SPRING BOOT 와 Keycloak를 이용한 SSO 구성 자료

이번에 시작하게 된 프로젝트에서 SSO를 구성하는 파트에 합류하게 되었는데

고객 제안서에 SSO를 keycloak를 이용해서 구현 한다는 부분이 있다고 해서 keycloak에 대한 정리와

이 부분을 연동해서 스프링 부트를 사용 하는 법에 대해 공부 하며 봤던 자료들을 함께 모아 보려 한다.

1.Setting Up a Keycloak Server

1.1. Downloading and Installing Keycloak

There are several distributions to choose from.

However, in this tutorial, we'll be using the standalone version.

Let's download the Keycloak-11.0.2 Standalone server distribution from the official source.

Installing the Server

You can install the server on Linux or Windows. The server download ZIP file contains the scripts and binaries to run the Keycloak server.

Procedure

1. Download keycloak-11.0.3.[zip|tar.gz] from Keycloak downloads.

2. Place the file in a directory you choose.

3. Unpack the ZIP file using the appropriate unzip utility, such as jar, tar, or unzip.

   Linux/Unix

   $ unzip keycloak-11.0.3.zip or $ tar -xvzf keycloak-11.0.3.tar.gz

   Windows

   > unzip keycloak-11.0.3.zip

Starting the Keycloak server

You start the server on the system where you installed it.

Prerequisites

• You saw no errors during the Keycloak server installation.

Procedure

1. Go to the bin directory of the server distribution.

2. Run the standalone boot script.

   Linux/Unix

   $ cd bin $ ./standalone.sh

   Windows

   > ...\bin\standalone.bat

Creating the admin account

Before you can use Keycloak, you need to create an admin account which you use to log in to the Keycloak admin console.

Prerequisites

• You saw no errors when you started the Keycloak server.

Procedure

1. Open http://localhost:8080/auth in your web browser.

   The welcome page opens, confirming that the server is running.

   Welcome page

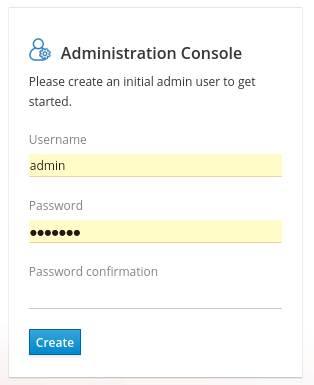

2. Enter a username and password to create an initial admin user

Logging into the admin console

After you create the initial admin account, you can log in to the admin console. In this console, you add users and register applications to be secured by Keycloak.

Prerequisites

• You have an admin account for the admin console.

Procedure

1. Click the Administration Console link on the Welcome page or go directly to http://localhost:8080/auth/admin/ (the console URL).

   The Administration Console is generally referred to as the admin console for short in Keycloak documentation.

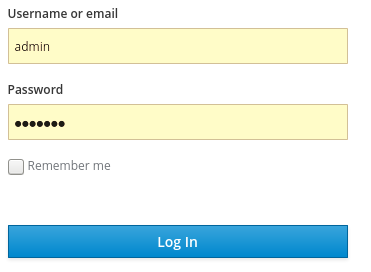

2. Enter the username and password you created on the Welcome page to open the admin console.

   Admin console login screen

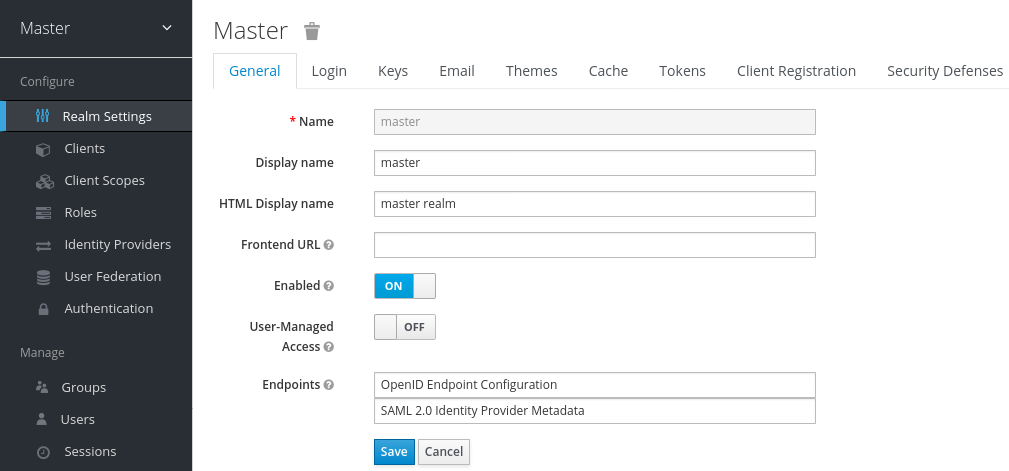

   The initial screen for the admin console appears.

   Admin console



Next steps

Now that you can log into the admin console, you can begin creating realms where administrators can create users and give them access to applications. For more details, see Creating a realm and a user.



Creating a realm and a user

The first use of the Keycloak admin console is to create a realm and create a user in that realm. You use that user to log in to your new realm and visit the built-in account console, to which all users have access.

Edit this sectionReport an issue

Realms and users

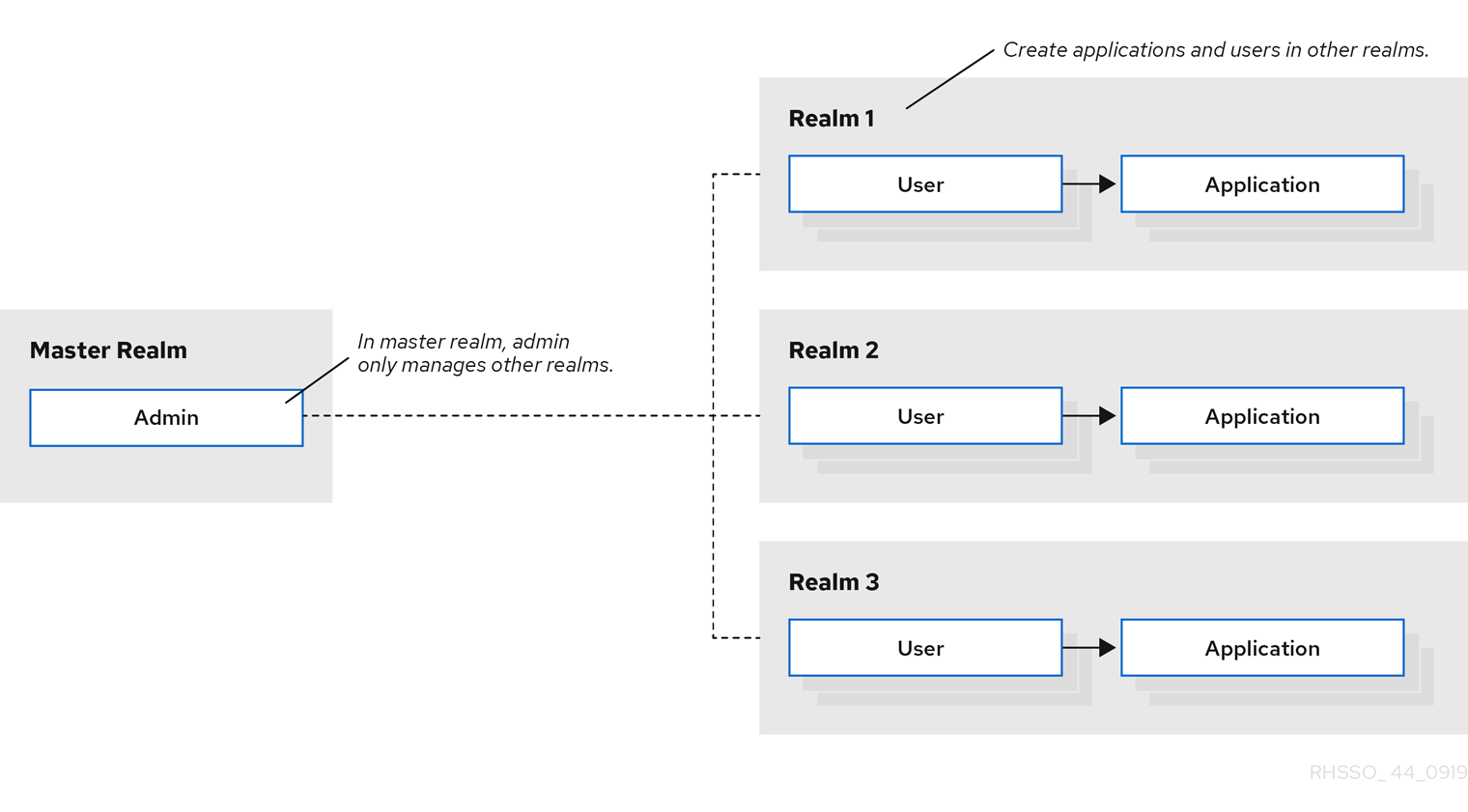

When you log in to the admin console, you work in a realm, which is a space where you manage objects. Two types of realms exist:

• Master realm - This realm was created for you when you first started Keycloak. It contains the admin account you created at the first login. You use this realm only to create other realms.

• Other realms - These realms are created by the admin in the master realm. In these realms, administrators create users and applications. The applications are owned by the users.

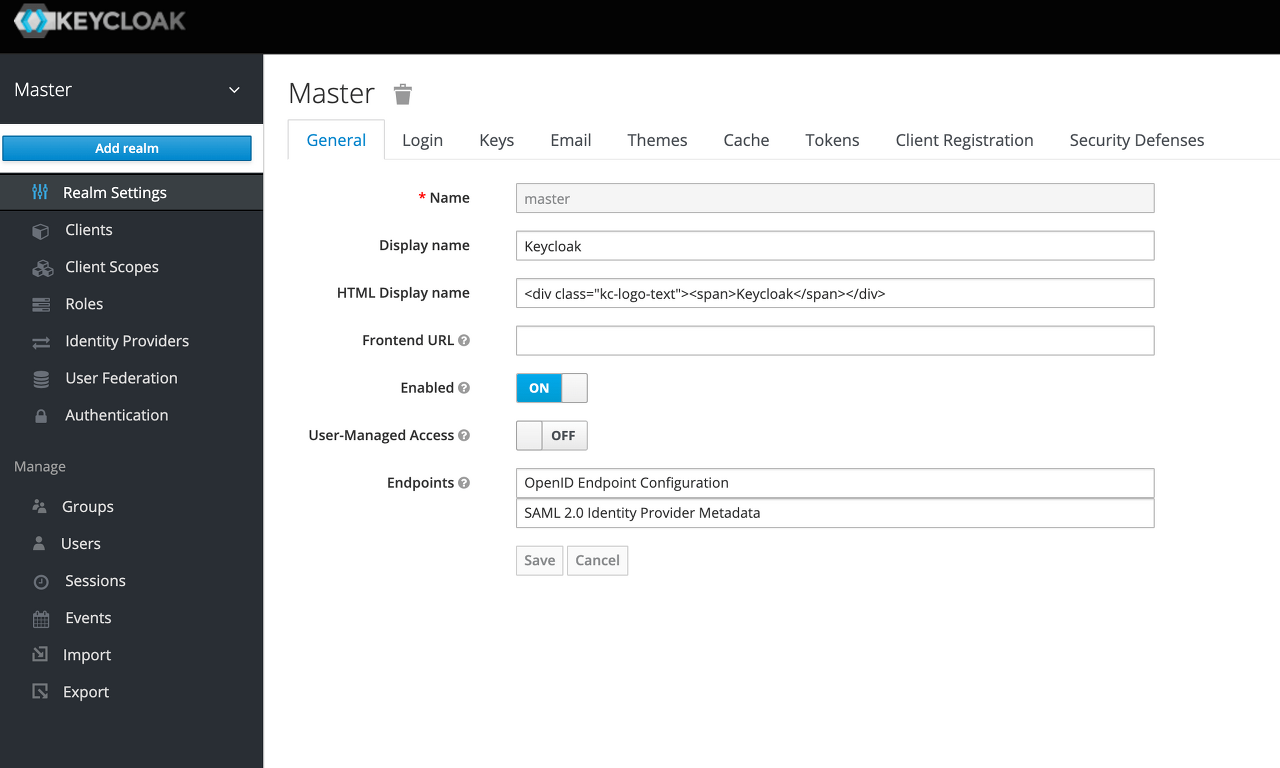

A successful login will take us to the console and open up the default Master realm for us.

Here we'll focus on creating a custom realm.

Let's navigate to the upper left upper corner to discover the Add realm button:

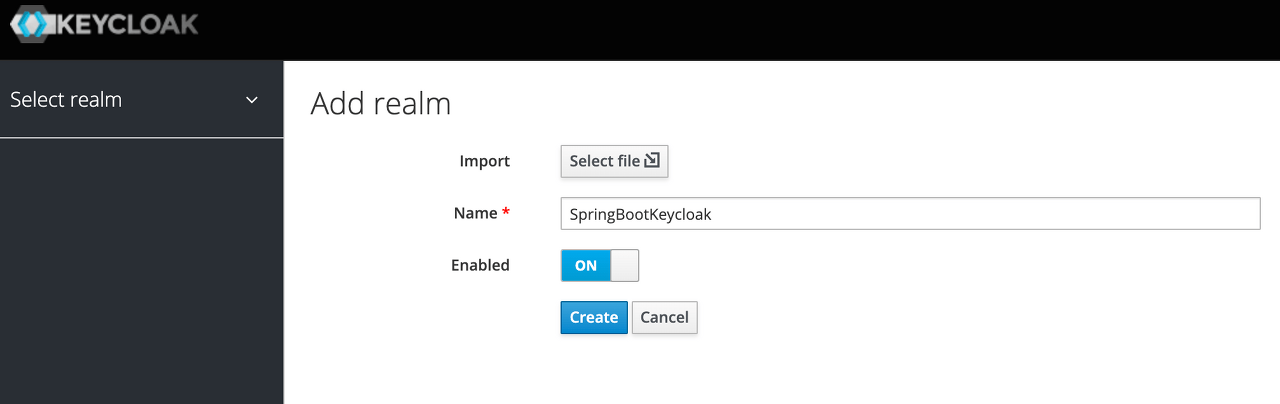

On the next screen, let's add a new realm called SpringBootKeycloak:

After clicking the Create button, a new realm will be created and we'll be redirected to it. All the operations in the next sections will be performed in this new SpringBootKeycloak realm.



Creating a Client

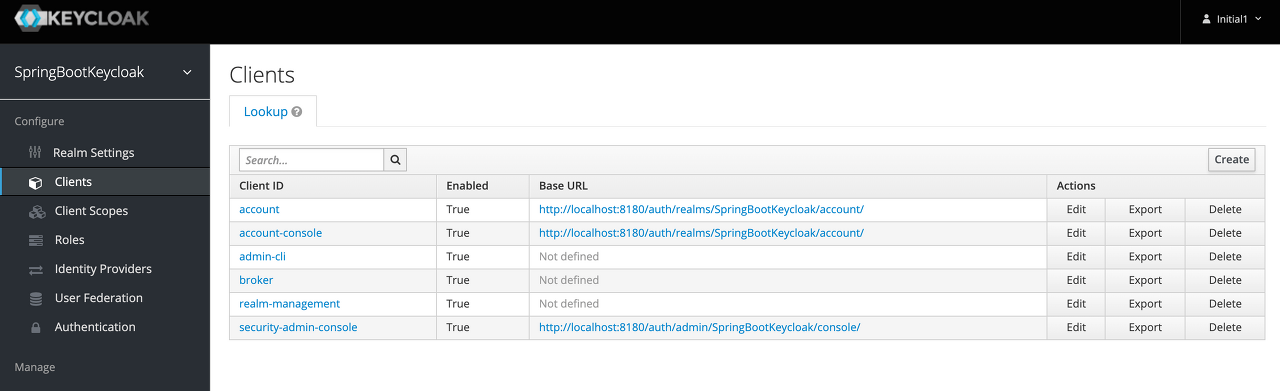

Now we'll navigate to the Clients page. As we can see in the image below, Keycloak comes with Clients that are already built-in:

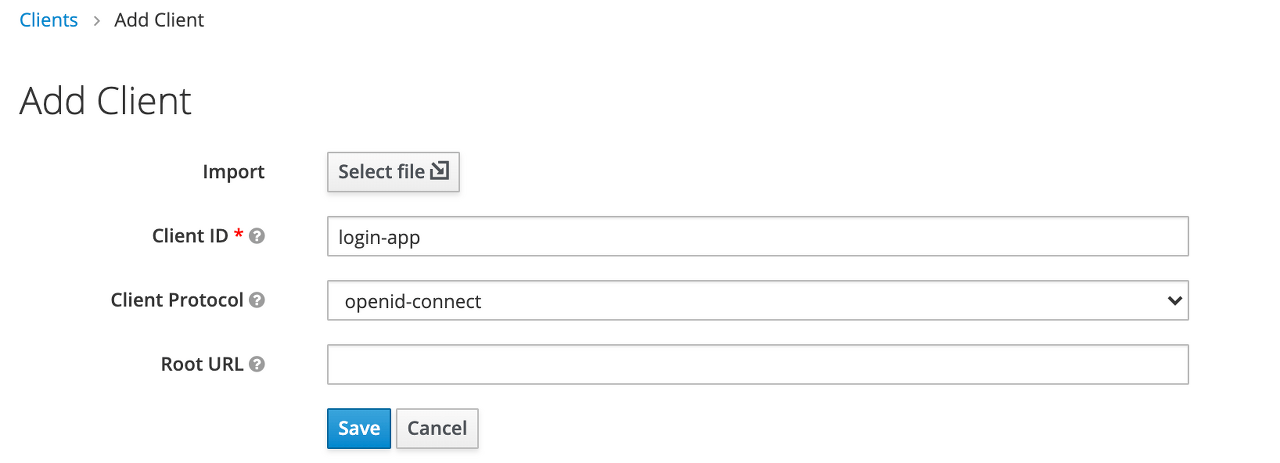

But we need to add a new client to our application, so we'll click Create. We'll call the new Client login-app:

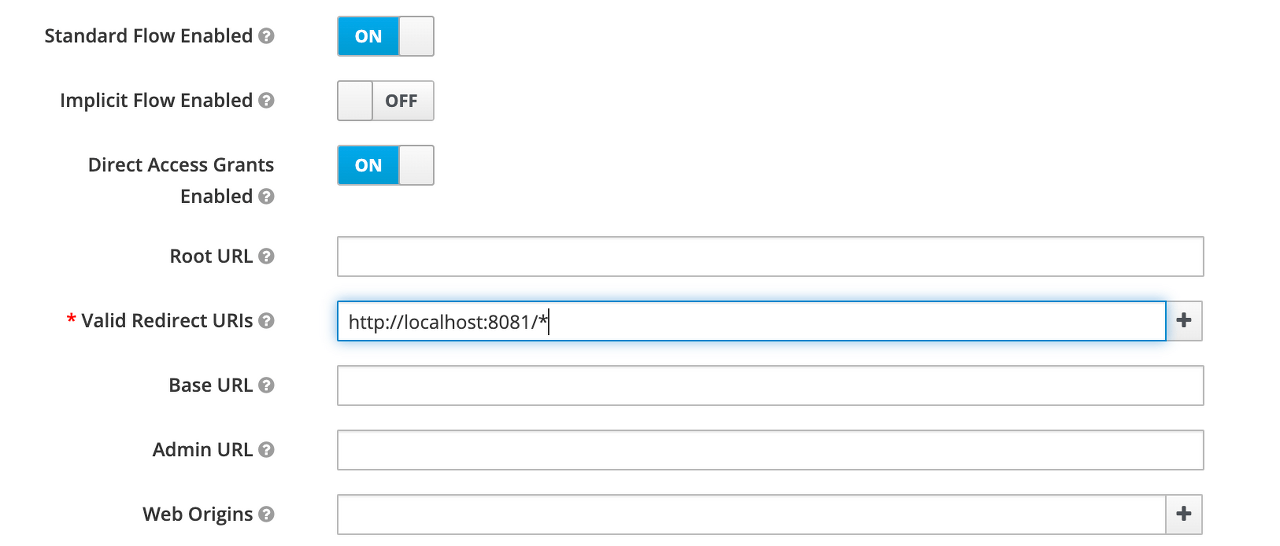

In the next screen, for this tutorial, we'll be leaving all the defaults except the Valid Redirect URIs field. This field should contain the application URL(s) that will use this client for authentication:

Later on, we'll be creating a Spring Boot Application running at the port 8081 that'll use this client. Hence we've used a redirect URL of http://localhost:8081/* above



Creating a Role and a User

Keycloak uses Role-Based Access. Therefore, each user must have a role.

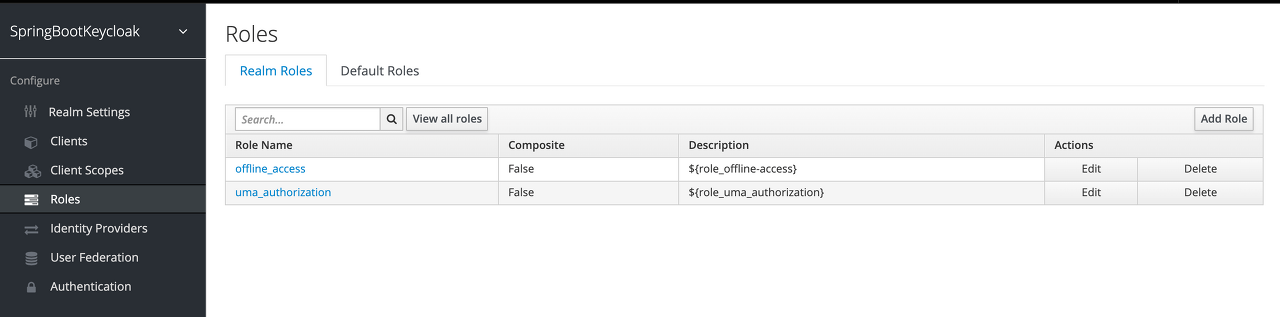

To do that, we need to navigate to the Roles page:

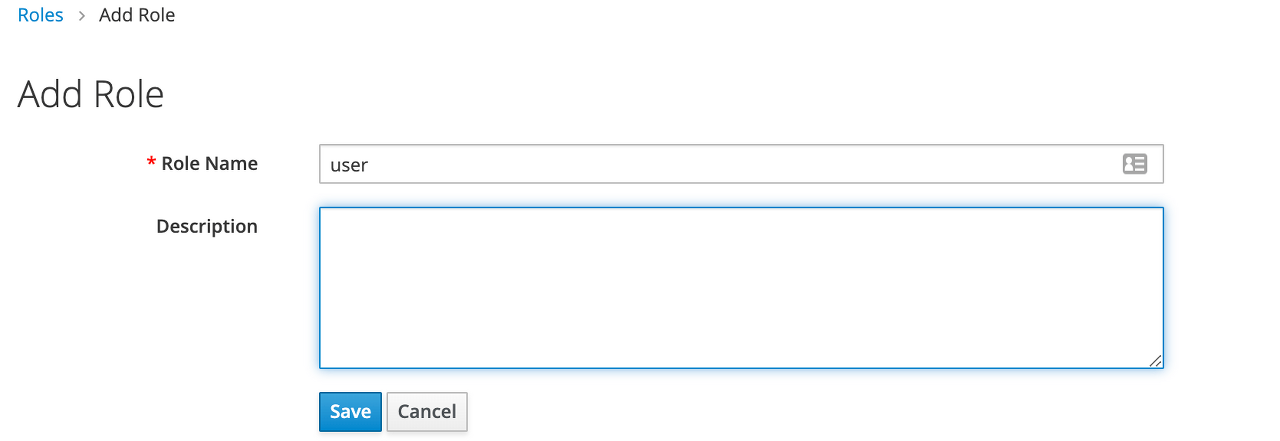

Then, we'll add the user role:

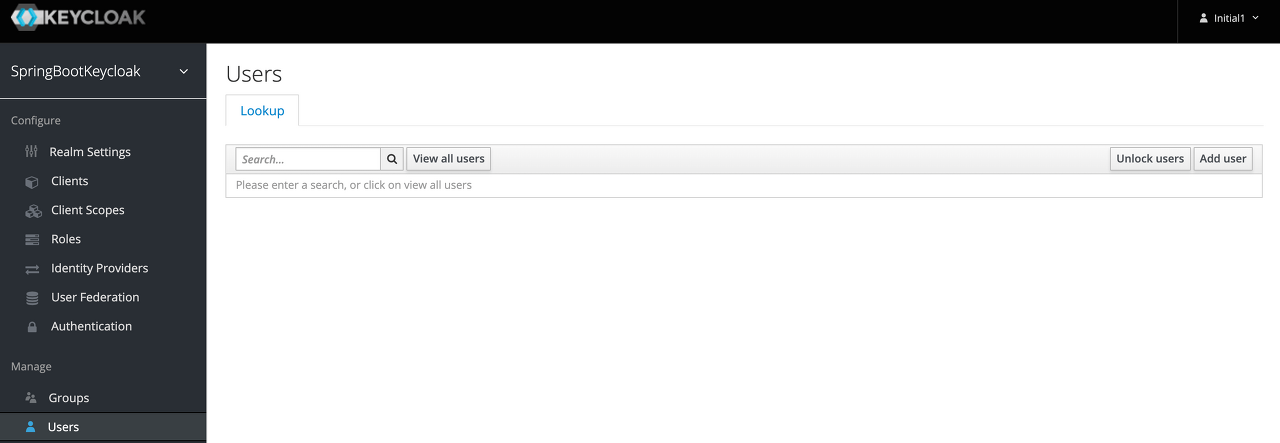

Now we've got a role that can be assigned to users, but there are no users yet. So let's go the Users page and add one:

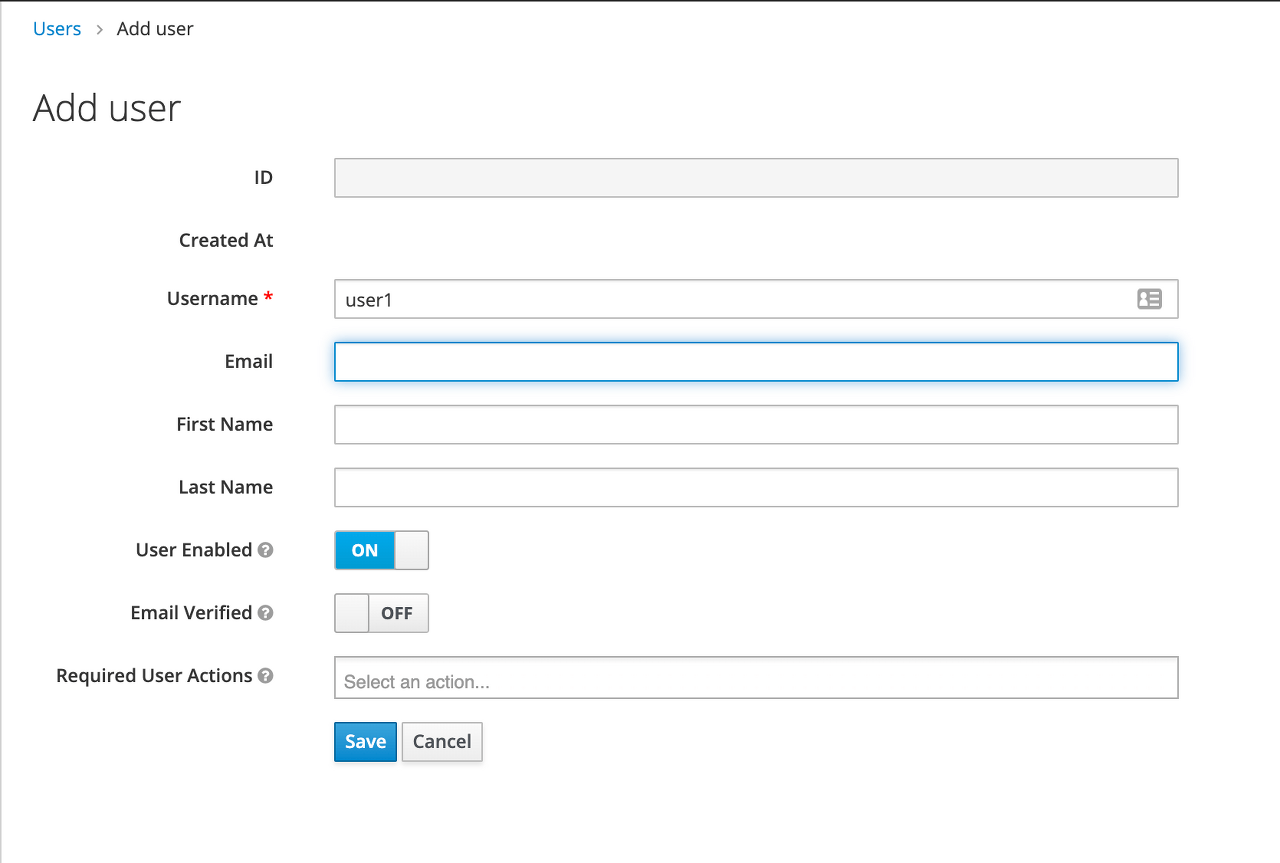

We'll add a user named user1:

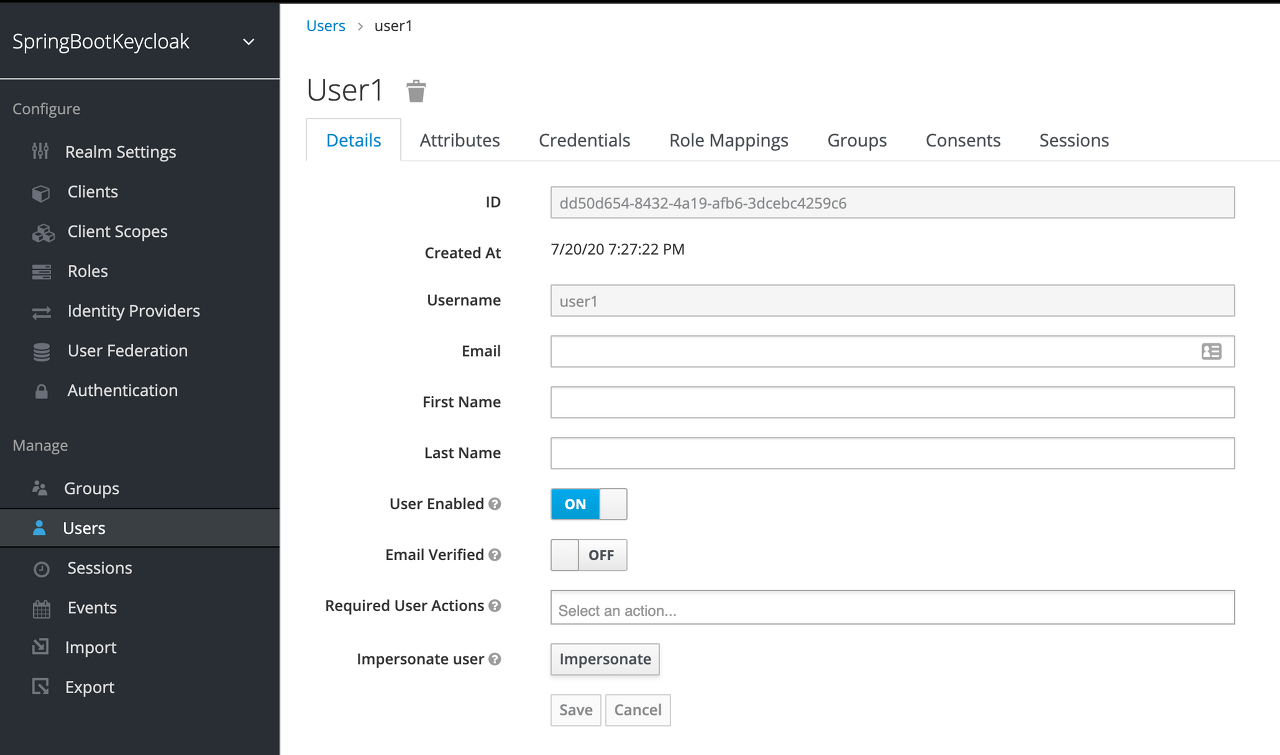

Once the user is created, a page with its details will be displayed:

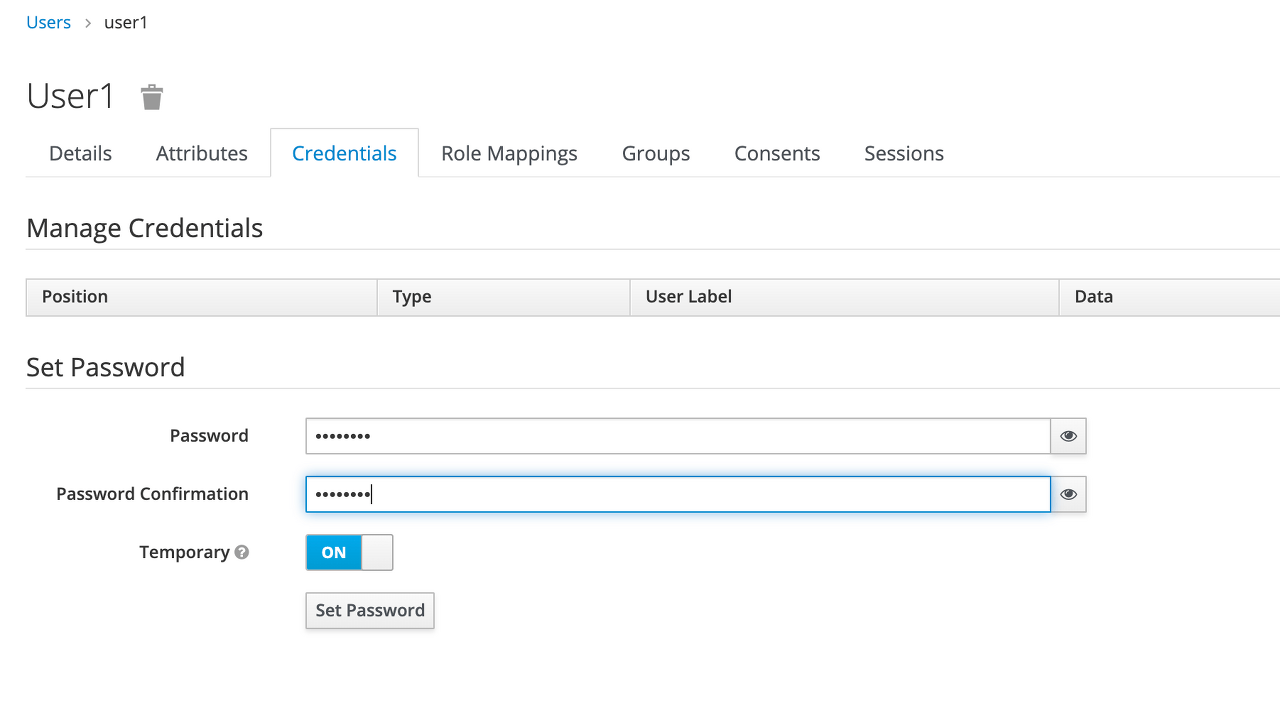

We can now go to the Credentials tab. We'll be setting the initial password to xsw2@WSX:

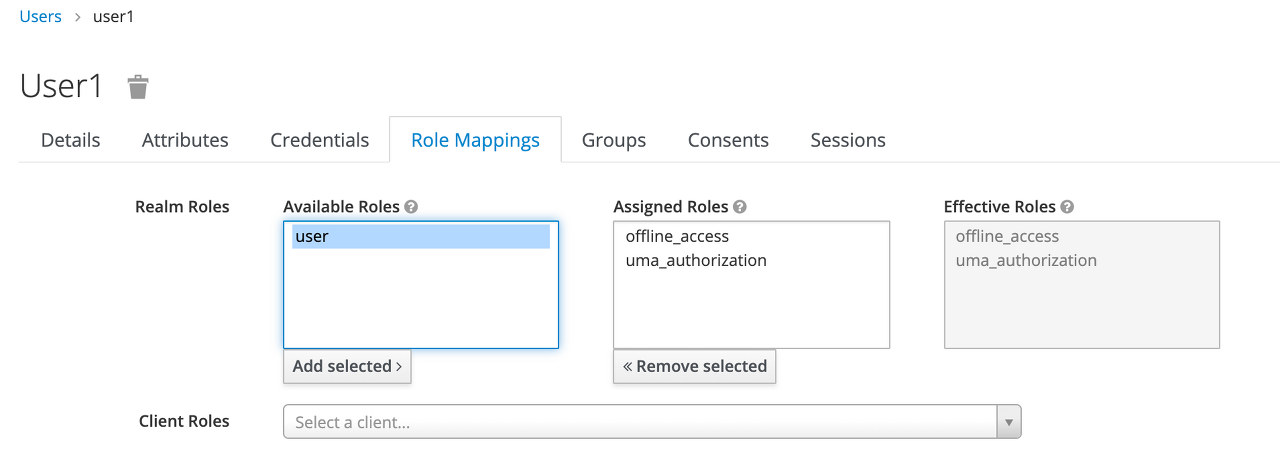

Finally, we'll navigate to the Role Mappings tab. We'll be assigning the user role to our user1:

Generating Access Tokens with Keycloak's API

Keycloak provides a REST API for generating and refreshing access tokens. We can easily use this API to create our own login page.

First, we need to acquire an access token from Keycloak by sending a POST request to this URL:

http://localhost:8180/auth/realms/master/protocol/openid-connect/token

The request should have this JSON body:

{

'client_id': 'your_client_id',

'username': 'your_username',

'password': 'your_password',

'grant_type': 'password'

}

In response, we'll get an access_token and a refresh_token.

The access token should be used in every request to a Keycloak-protected resource by simply placing it in the Authorization header:

headers: {

'Authorization': 'Bearer' + access_token

}

Once the access token has expired, we can refresh it by sending a POST request to the same URL as above, but containing the refresh token instead of username and password:

{

'client_id': 'your_client_id',

'refresh_token': refresh_token_from_previous_request,

'grant_type': 'refresh_token'

}

Keycloak will respond to this with a new access_token and refresh_token.



Keycloak is an open-source identity and access management solution which makes it easy to secure modern applications and services with little to no code.

Keycloak comes with its own adapters for selected platforms, but it is also possible to use generic OpenID Connect Relying Party and SAML Service Provider libraries. But using the Keycloak Client Adaptors would be much simpler, easy to use and they require less boilerplate code than what is typically required by a library.

The primary focus of this article is to secure Spring Boot REST APIs with Keycloak Spring Boot Adaptor.

To follow through this tutorial, you need to have a running Keycloak instance. If you don’t have, follow my previous Medium article.

Keycloak for Identity and Access Management & High Availability Deployment with Kubernetes



Keycloak Configuration

First, let’s make the required configurations in Keycloak.

Create Realm

A Realm manages a set of users, credentials, roles, and groups. A user belongs to and logs into a realm. Realms are isolated from one another and can only manage and authenticate the users that they control.

1. Go to http://localhost:8080/auth/admin/ and log in to the Keycloak Admin Console using the admin credentials.
2. From the Master drop-down menu, click Add Realm. When you are logged in to the master realm this drop-down menu lists all existing realms.
3. Type Demo-Realm in the Name field and click Create.



Add Realm in Keycloak Admin Console

When the realm is created, the main admin console page opens. Notice the current realm is now set to Demo-Realm. Switch between managing the master realm and the realm you just created by clicking entries in the Select realm drop-down menu.

Make sure Demo-Realm is selected for the below configurations. Avoid using the master realm. You don’t have to create the realm every time. It’s a one time process.

Create a Client

Clients are entities that can request Keycloak to authenticate a user. Most often, clients are applications and services that want to use Keycloak to secure themselves and provide a single sign-on solution. Clients can also be entities that just want to request identity information or an access token so that they can securely invoke other services on the network that are secured by Keycloak.

1. Click on the Clients menu from the left pane. All the available clients for the selected Realm will get listed here.



Client Management in Keycloak Admin Console

2. To create a new client, click Create. You will be prompted for a Client ID, a Client Protocol and a Root URL. A good choice for the client ID is the name of your application (springboot-microservice), the client protocol should be set to openid-connectand the root URL should be set to the application URL.



Add Client in Keycloak Admin Console

3. After saving you will be presented with the client configuration page where you can assign a name and description to the client if desired.

Set the Access Type to confidential, Authorization Enabled to ON , Service Account Enabled to ON and click Save.



Configure client with Access Type: ‘confidential’

Credentials tab will show the Client Secret which is required for the Spring Boot Application Keycloak configurations.



Client Credentials Tab

4. Go to Client Roles tab to create the springboot-microservice role definitions. Imagine the Application that you are building with have different types of users with different user permissions. Ex: users and administrators.

• Some APIs would only be accessible to users only.
• Some APIs would be accessible to administrators only.
• Some APIs would be accessible to both users and administrators.

As per the example, let’s create two roles: user and adminby clicking Add Role button.



‘springboot-microservice’ Client Roles



Add ‘user’ role and Save



Add ‘admin’ role and Save



‘springboot-microservice’ Client Roles after adding ‘user’, ‘admin’ roles

Create Realm Roles

Applications often assign access and permissions to specific roles rather than individual users as dealing with users can be too fine grained and hard to manage.

Let’s create app-user and app-admin Realm roles by assigning correspondingspringboot-microservice roles (user, admin).

1. Click on the Roles menu from the left pane. All the available roles for the selected Realm will get listed here.



Realm Roles in Keycloak Admin Console

2. To createapp-user realm role, click Add Role. You will be prompted for a Role Name, and a Description. Provide the details as below and Save.



Adding ‘app-user’ Realm Role

After Save, enabled Composite Roles and Search for springboot-microservice under Client Roles field. Select user role of the springboot-microservice and Click Add Selected >.



Assign ‘user’ Client Role to ‘app-user’ Realm Role

This configuration will assign springboot-microservice user client role to the app-user realm role. If you have multiple clients with multiple roles, pick and choose the required roles from each client to create realm roles based on the need.

3. Follow the same steps to create the app-admin user but assign admin client role instead of user role.



Assign ‘admin’ Client Role to ‘app-admin’ Realm Role

Create Users

Users are entities that are able to log into your system. They can have attributes associated with themselves like email, username, address, phone number, and birth day. They can be assigned group membership and have specific roles assigned to them.

Let’s create following users and grant them app-user and app-admin roles for testing purposes.

• employee1 with app-userrealm role
• employee2 with app-adminrealm role
• employee3 with app-user& app-adminrealm roles

1. From the menu, click Users to open the user list page.
2. On the right side of the empty user list, click Add User to open the add user page.
3. Enter a name in the Username field; this is the only required field. Flip the Email Verified switch from Off to On and click Save to save the data and open the management page for the new user.



Add New User to ‘Demo-Realm‘

4. Click the Credentials tab to set a temporary password for the new user.

5. Type a new password and confirm it. Flip the Temporary switch from On to Off and click Reset Password to set the user password to the new one you specified. For simplicity let’s set the password to mypassword for all the users.



Setting Credentials to Users

6. Click the Role Mappings tab to assign realm roles to the user. Realm roles list will be available in Available Roles list. Select one required role and click on the Add Selected > to assign it to the user.

After role assignment, assigned roles will be available under Assigned Roles list. Role assignments for employee1, employee2, and employee3 would be as below.



`employee1` Role Assignment



`employee2` Role Assignment



`employee3` Role Assignment

Yes, it was a bit of a hassle to go through all the configurations. But when you keep using Keycloak, these configurations will become a piece of cake. For new microservices getting added, you don’t need to do all of the above. You just need to add a new client with client roles and assign the client roles to corresponding realm roles.

Generate Tokens

Let’s learn how to generate an access token for Keycloak users.

1. Go to Realm Settings of the Demo-Realm from the left menu and click on OpenID Endpoint Configuration to view OpenID Endpoint details.



Realm Settings of ‘Demo-Realm’



Keycloak Realm OpenID Endpoint Configuration

2. Copy token_endpoint from the OpenID Endpoint Configuration. URL would look like:

<KEYCLOAK_SERVER_URL>/auth/realms/<REALM_NAME>/protocol/openid-connect/tokenEx: http://localhost:8080/auth/realms/Demo-Realm/protocol/openid-connect/token

3. Use the following CURL command to generate user credentials. Replace KEYCLOAK_SERVER_URL, REALM_NAME, CLIENT_ID, CLIENT_SECRET, USERNAME, PASSWORD with correct values.

curl -X POST '<KEYCLOAK_SERVER_URL>/auth/realms/<REALM_NAME>/protocol/openid-connect/token' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'grant_type=password' \
--data-urlencode 'client_id=<CLIENT_ID>' \
--data-urlencode 'client_secret=<CLIENT_SECRET>' \
--data-urlencode 'username=<USERNAME>' \
--data-urlencode 'password=<PASSWORD>'

Example:

curl -X POST 'http://localhost:8080/auth/realms/Demo-Realm/protocol/openid-connect/token' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'grant_type=password' \
--data-urlencode 'client_id=springboot-microservice' \
--data-urlencode 'client_secret=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxx' \
--data-urlencode 'username=employee1' \
--data-urlencode 'password=mypassword'

Execute the CURL from Terminal or use Postman. The response would look like below.



Get Token using Postman

Let’s decode the access_token JWT token issued for employee1 using https://jwt.io.

access_token includes the permission details.

• realm_access.roles includes app_user realm role.
• resource_access.springboot-microservice.roles include the userclient role.
• preferred_username includes the username of the user (employee1)



• iat, exp includes the token issued time as well as the token expiry time. Access Token expiry times can be customizable under Realm Settings, Tokens tab. By default, Access Token Lifespan would be set to 5 minutes which can be customized based on your security requirements.





In the testing phase of the Spring Boot Application, use the above steps to generate access tokens for multiple users with corresponding user credentials. Further, if the token expired, generate a new token with the same process.



Spring Boot Application Configuration

Let’s build a new Spring Boot application and configure it with Keycloak Spring Boot Adaptor.

Creating the Spring Boot Application

To generate the initial project structure, visit Spring Initializr: https://start.spring.io/

Provide details as below.

• Project: Maven Project
• Language: Java
• Spring Boot: Select the latest stable version or keep the default selection as it is.
• Project Metadata: Provide an artifact name and select your preferred Java version. Make sure your local environment has the selected Java version available. If not download and install.
• Dependencies: Add Spring Web, Spring Security and Spring Boot DevTools



Click Generate to download the project structure zip bundle and extract it.

Open it in your preferred Java development IDE such as IntelliJ IDEA, Eclipse.

pom.xml Changes

Open pom.xml and make the following changes

1. Add Keycloak Version Property

Find the <properties> section and add <keycloak.version> property. Property values should match with the Keycloak version. In my case 9.0.2.

<properties>
<java.version>11</java.version>
<keycloak.version>9.0.2</keycloak.version>
</properties>

2. Add Keycloak Dependency

Find the <dependencies> section and add keycloak-spring-boot-starter.

<dependencies>
<dependency>
<groupId>org.keycloak</groupId>
<artifactId>keycloak-spring-boot-starter</artifactId>
<version>${keycloak.version}</version>
</dependency>
...
</dependencies>

3. Add Dependency Management

Below the <dependencies> section add below section.

<dependencyManagement>
<dependencies>
<dependency>
<groupId>org.keycloak.bom</groupId>
<artifactId>keycloak-adapter-bom</artifactId>
<version>${keycloak.version}</version>
<type>pom</type>
<scope>import</scope>
</dependency>
</dependencies>
</dependencyManagement>

Check the updated pom.xml changes here.

application.properties

Open application.properties under src/main/resources and provide required Keycloak Configurations.

server.port = 8000

keycloak.realm = <REALM_NAME>
keycloak.auth-server-url = <KEYCLOAK_SERVER_URL>/auth
keycloak.ssl-required = external
keycloak.resource = <CLIENT_ID>
keycloak.credentials.secret = <CLIENT_SECRET>
keycloak.use-resource-role-mappings = true
keycloak.bearer-only = true

Example

server.port = 8000

keycloak.realm = Demo-Realm
keycloak.auth-server-url = http://localhost:8080/auth
keycloak.ssl-required = external
keycloak.resource = springboot-microservice
keycloak.credentials.secret = XXXXXXXXXXXXXXXXXXXXXXXXX
keycloak.use-resource-role-mappings = true
keycloak.bearer-only = true

KeycloakSecurityConfig.java

Keycloak provides a KeycloakWebSecurityConfigurerAdapter as a convenient base class for creating a WebSecurityConfigurer instance. The implementation allows customization by overriding methods. While its use is not required, it greatly simplifies your security context configuration.

Let’s create KeycloakSecurityConfig.java in config package.

@Configuration
@EnableWebSecurity
@EnableGlobalMethodSecurity(jsr250Enabled = true)
public class KeycloakSecurityConfig extends KeycloakWebSecurityConfigurerAdapter {

@Override
protected void configure(HttpSecurity http) throws Exception {
super.configure(http);
http.authorizeRequests()
.anyRequest()
.permitAll();
http.csrf().disable();
}

@Autowired
public void configureGlobal(AuthenticationManagerBuilder auth) throws Exception {
KeycloakAuthenticationProvider keycloakAuthenticationProvider = keycloakAuthenticationProvider();
keycloakAuthenticationProvider.setGrantedAuthoritiesMapper(new SimpleAuthorityMapper());
auth.authenticationProvider(keycloakAuthenticationProvider);
}

@Bean
@Override
protected SessionAuthenticationStrategy sessionAuthenticationStrategy() {
return new RegisterSessionAuthenticationStrategy(new SessionRegistryImpl());
}

@Bean
public KeycloakConfigResolver KeycloakConfigResolver() {
return new KeycloakSpringBootConfigResolver();
}
}

configureGlobal: Registers the KeycloakAuthenticationProvider with the authentication manager.

sessionAuthenticationStrategy: Defines the session authentication strategy.

KeycloakConfigResolver : By Default, the Spring Security Adapter looks for a keycloak.json configuration file. You can make sure it looks at the configuration provided by the Spring Boot Adapter by adding this bean

@EnableGlobalMethodSecurity: The jsr250Enabled property allows us to use the @RoleAllowed annotation. We’ll explore more about this annotation in the next section.

TestController.java

We need some dummy APIs to test the API security.

Create TestController.java in controller package.

@RestController
@RequestMapping("/test")
public class TestController {

@RequestMapping(value = "/anonymous", method = RequestMethod.GET)
public ResponseEntity<String> getAnonymous() {
return ResponseEntity.ok("Hello Anonymous");
}

@RequestMapping(value = "/user", method = RequestMethod.GET)
public ResponseEntity<String> getUser() {
return ResponseEntity.ok("Hello User");
}

@RequestMapping(value = "/admin", method = RequestMethod.GET)
public ResponseEntity<String> getAdmin() {
return ResponseEntity.ok("Hello Admin");
}

@RequestMapping(value = "/all-user", method = RequestMethod.GET)
public ResponseEntity<String> getAllUser() {
return ResponseEntity.ok("Hello All User");
}}

Run the Spring Boot Application. Make sure Maven is installed and configured.

mvn spring-boot:run



As defined in the TestController, let’s invoke the REST APIs with CURL one by one.

curl -X GET 'http://localhost:8000/test/anonymous'
curl -X GET 'http://localhost:8000/test/user'
curl -X GET 'http://localhost:8000/test/admin'
curl -X GET 'http://localhost:8000/test/all-user'

Outputs for each curl would be as below:



As you see all APIs don’t require any authentication or authorization. Now let’s try to secure these API endpoints.

Define Role-Based Access with @RolesAllowed Annotation

Use @RolesAllowed annotation can be used to define the allowed user roles.

/test/anonymous:

This API should be accessible without any Authorization token with no restrictions. It already meets our requirements and needs no additional changes.

/test/user:

This API should be accessible to users with springboot-microservice user role. This can be defined by changing the code as below.

@RolesAllowed("user")
@RequestMapping(value = "/user", method = RequestMethod.GET)
public ResponseEntity<String> getUser(@RequestHeader String Authorization) {
return ResponseEntity.ok("Hello User");
}

/test/admin:

This API should be accessible to users with springboot-microservice admin role. This can be defined by changing the code as below.

@RolesAllowed("admin")
@RequestMapping(value = "/admin", method = RequestMethod.GET)
public ResponseEntity<String> getAdmin(@RequestHeader String Authorization) {
return ResponseEntity.ok("Hello Admin");
}

/test/all-user:

This API should be accessible to users with springboot-microservice user & admin roles. This can be defined by changing the code as below.

@RolesAllowed({ "admin", "user" })
@RequestMapping(value = "/all-user", method = RequestMethod.GET)
public ResponseEntity<String> getAllUser(@RequestHeader String Authorization) {
return ResponseEntity.ok("Hello All User");
}

Now TestController would look like below.

@RestController
@RequestMapping("/test")
public class TestController {

@RequestMapping(value = "/anonymous", method = RequestMethod.GET)
public ResponseEntity<String> getAnonymous() {
return ResponseEntity.ok("Hello Anonymous");
}

@RolesAllowed("user")
@RequestMapping(value = "/user", method = RequestMethod.GET)
public ResponseEntity<String> getUser(@RequestHeader String Authorization) {
return ResponseEntity.ok("Hello User");
}

@RolesAllowed("admin")
@RequestMapping(value = "/admin", method = RequestMethod.GET)
public ResponseEntity<String> getAdmin(@RequestHeader String Authorization) {
return ResponseEntity.ok("Hello Admin");
}

@RolesAllowed({ "admin", "user" })
@RequestMapping(value = "/all-user", method = RequestMethod.GET)
public ResponseEntity<String> getAllUser(@RequestHeader String Authorization) {
return ResponseEntity.ok("Hello All User");
}

}

Restart the Spring Boot Application and test above APIs by passing tokens from employee1, employee2, employee3 access tokens in the Authorization header with the bearer prefix (bearer <ACCESS_TOKEN>).

curl -X GET 'http://localhost:8000/test/user' \
--header 'Authorization: bearer <ACCESS_TOKEN>'Outputs:
anonymous: 403 Forbidden
employee1: Hello User
employee2: 403 Forbidden
employee3: Hello Usercurl -X GET 'http://localhost:8000/test/admin' \
--header 'Authorization: bearer <ACCESS_TOKEN>'Outputs:
anonymous: 403 Forbidden
employee1: 403 Forbidden
employee2: Hello Admin
employee3: Hello Admincurl -X GET 'http://localhost:8000/test/all-user' \
--header 'Authorization: bearer <ACCESS_TOKEN>'Outputs:
anonymous: 403 Forbidden
employee1: Hello All User
employee2: Hello All User
employee3: Hello All User

If the token is expired, you will receive 401 Unauthorized error.

Define Role-Based Access with Security Configuration

Rather than using @RolesAllowed annotation, the same configuration can be made in KeycloakSecurityConfig class as below.

@Override
protected void configure(HttpSecurity http) throws Exception {
super.configure(http);
http.authorizeRequests()
.antMatchers("/test/anonymous").permitAll()
.antMatchers("/test/user").hasAnyRole("user")
.antMatchers("/test/admin").hasAnyRole("admin")
.antMatchers("/test/all-user").hasAnyRole("user","admin")
.anyRequest()
.permitAll();
http.csrf().disable();
}



Hope you enjoyed the article. Final code can be found here.
